How to Use Svelte with Electron

The following guide demonstrates how to setup Svelte with Electron Forge. The end result is an electron app capable of hot reloading the render process.

💡 You can skip these steps by manually cloning the electron-forge-svelte template from github.

Step 1 - Generate an Electron Forge App

First, generate an electron forge app.

npx create-electron-app my-app
cd my-app

Step 2 - Manually Integrate Svelte & Rollup

At this point, we need to manually add svelte to the project. This guide uses the official Svelte Template for the source code. Get ready for some surgical copy and pasting…

1. Delete index.html and index.css from the src directory.
2. Create a public folder, then copy the index.html, global.css, and favicon.png from the Svelte Template.
3. Copy the src/main.js and src/App.svelte files from the Svelte Template. To avoid confusion with Electron’s main process, change the name of main to svelte.
4. Copy the rollup.config.js file from the svelte template.

Package.json Setup

Copy the dependencies and and devDependencies from the Svelte Template to your project’s package.json.

npm install
npm install concurrently

Copy the scripts from Svelte Template, the append svelte- to each script name. Next, modify the start script to concurrently run svelte and electron.

  "scripts": {
    "start": "concurrently \"npm:svelte-dev\" \"electron-forge start\"",
    "package": "electron-forge package",
    "make": "electron-forge make",
    "publish": "electron-forge publish",
    "lint": "echo \"No linting configured\"",
    "svelte-build": "rollup -c",
    "svelte-dev": "rollup -c -w",
    "svelte-start": "sirv public"
  },

Rollup Modification

Make the following changes to the rollup config file. Update the serve function to call svelte-start instead of start.

export default {
	input: 'src/main.js',  // <-- here
    // ...omitted
}

//
function serve() {

    // ...omitted
    require('child_process').spawn('npm', ['run', 'svelte-start', '--', '--dev'], // <-- and here

HTML Modification

Electron resolves paths in your index.html relative to the index.js main process. Update your the html to use paths relative to the current working directory, i.e ./.

<link rel="icon" type="image/png" href="./favicon.png" />
<link rel="stylesheet" href="./global.css" />
<link rel="stylesheet" href="./build/bundle.css" />

<script defer src="./build/bundle.js"></script>

Main Process Modification

Update the path to index.html.

 mainWindow.loadFile(path.join(__dirname, '../public/index.html'));

Step 3 - Enable Live Reload

Enable live reloading with electron reload.

npm i electron-reload

Add the following line in your main process.

require('electron-reload')(__dirname, {
  electron: path.join(__dirname, '../node_modules', '.bin', 'electron'),
  awaitWriteFinish: true,
});

Expect a delay of approx 2s.

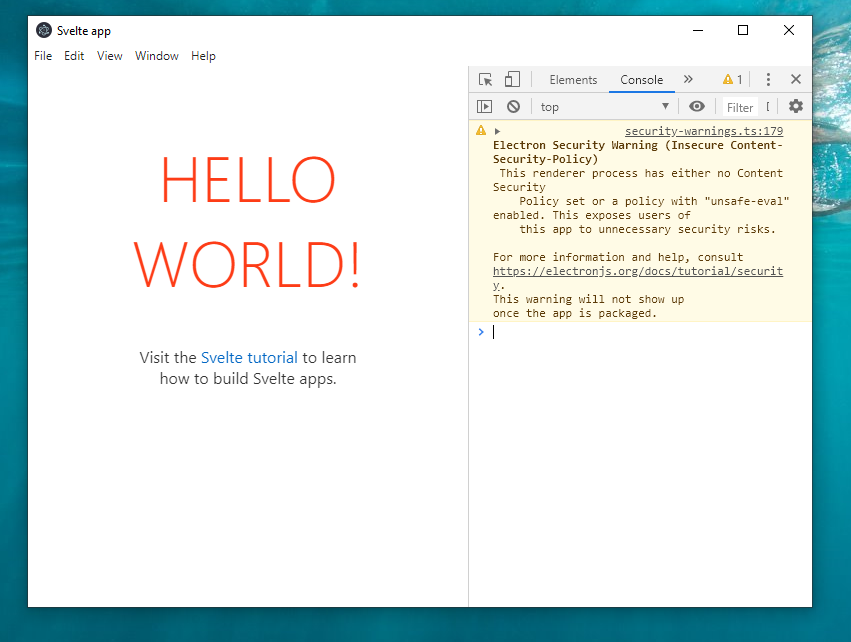

✔️ All done!
